TYSIM KRT150 Casing Oscillator 1500kN.m Max Torque 450mm Stroke for Foundation Piles

Orzecznictwo
dobra jakość Maszyna do sztaplowania na sprzedaż
dobra jakość Maszyna do sztaplowania na sprzedaż
Powiedziałem, że mój szef, Rafael, który bardzo lubi twój produkt, ma nadzieję na coraz większą współpracę biznesową, ponieważ mówię ci, że mój szef jest bardzo zadowolony z produktu.

—— Pani Bethlehem

Jesteśmy pod wrażeniem Twojej wiernej jakości i doskonałej obsługi. Będziemy oczekiwać na dobry interes z Twoją firmą.

—— Pan Win Hlaing

Im Online Czat teraz

TYSIM KRT150 Casing Oscillator 1500kN.m Max Torque 450mm Stroke for Foundation Piles

Chiny TYSIM KRT150 Casing Oscillator 1500kN.m Max Torque 450mm Stroke for Foundation Piles dostawca
TYSIM KRT150 Casing Oscillator 1500kN.m Max Torque 450mm Stroke for Foundation Piles dostawca TYSIM KRT150 Casing Oscillator 1500kN.m Max Torque 450mm Stroke for Foundation Piles dostawca

Duży Obraz :  TYSIM KRT150 Casing Oscillator 1500kN.m Max Torque 450mm Stroke for Foundation Piles

Szczegóły Produktu:

Miejsce pochodzenia: Jiangsu, Chiny
Nazwa handlowa: TYSIM
Orzecznictwo: CE & ISO9001
Model Number: KRT150

Zapłata:

Minimum Order Quantity: 1set
Cena: Negotiation
Packaging Details: Nude Packing and One Wooden Case, Shipping--LCL
Delivery Time: 30-45 days
Supply Ability: 5 sets/month
Contact Now
Szczegółowy opis produktu
Średnica obudowy: 600/800/1000/1200/1500 mm Maksymalne ciśnienie robocze: 32Mpa
Maksymalny moment obrotowy: 1500kN.m Udar mózgu: 450mm
Przeciwwaga: 10T Kąt obrotu: ± 10 °
Zacisk wysokości: 650 mm Ciśnienie w Mainframe: 1050 kN
Wyważ ciśnienie wagowe: 900 kN Nadwaga: 19000 kg
Szerokość skrzynki przyłączeniowej: 560 mm Całkowita długość: 4285 mm
Szerokość ogona: 1170 mm Wysokość skrzynki przyłączeniowej: 580 mm
Całkowita wysokość: 1780 mm

Casing Oscillator KRT150



1. Description



Greater embedding pressure can be achieved by Casing oscillator instead of Casing Drive Adapter, Casing can be embedded even in hard layer.



Casing oscillator owns such merits as strong adaptability to geology, high quality of completed pile, low noise, no mud contamination, slight influence to former foundation, easy control, low cost, etc. It owns advantages in following geological conditions: instable layer, underground slip layer, underground river, rock formation, old pile, erratic boulder, quicksand, foundation of emergency and temporary building.



It is especially suitable for coast, beach, old city wasteland, desert, mountain area and the place surrounded by buildings.



2. Specifications



KRT150 Casing Oscillator Technical Specification
Casing diameter mm 600/800/1000/1200/1500
Max. Operating pressure Mpa 28
Max.torque KN.m 1500
Rotation angle o ±10o
Stroke mm 450
Max. lifting force KN 2050
Height of Mainframe mm 650
Overall weight Kg 19000
Mainframe pressure KN 1050
Balance weight pressure KN 900
Clamping force(clamp) KN 2200
Clamping force(sub clamp) KN 280
Width of connection box mm 560
Width of tail mm 1600
Width of base frame mm 2720
Overall length mm 4285
Height of tail mm 1170
Height of connection box mm 580
Connection box pin shaft stroke mm 60
Height of jaw mm 630
Height of mechanical fixture mm 1150
Overall Height mm 1780



3.Competitive Advantage



(1) Low purchase and transport costs for the shared utilization of rig pump instead of special pump truck.

(2) Low operation cost for the sharing of output power of rotary drilling rig, energy saving and environmental friendly.

(3) Ultra-large pull/push force up to 210t is supplied by lifting cylinder and the large can be achieved with added counter-weight to speed up construction.

(4) Dismountable counterweight from 4 to 10t as required.

(5) Reduction in transport cost for the counterweight is made of cast-in-place concrete.

(6) Work stably-combined action of counterweight frame and ground anchor fix the bottom of oscillator to the ground firmly and reduce the reaction torque generated by oscillator to rig.

(7) High working efficiency for the automatic casing oscillation after 3-5m casing-in.

(8) The distance between oscillator and rig can be adjusted conveniently due to bolt connections.

(9) Added anti-torsion pin of clamping collar to ensure 100% torque transfer to casing.

(10) 0.6-1.5m casing diameter with different clamping collar to meet customers’ needs.



4. Using Conditions



When the strata conditions are unstable, Casing is required to be driven to overall depth to prevent hole's collapse. It is called All Casing method (Benoto Method, Shaft Drilling).


To drive the Casing and retract it after concreting, Casing Oscillator is strongly recommended to use.


With its superior oscillating torque and lifting force, the machine shows the best performance of driving and retracting the casing.


If it is used together with Hammer Grab, it shows the fast excavating speed with its big volume of jaw and it is available for excavating gravels and boulders layer.

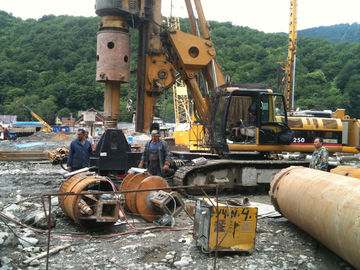

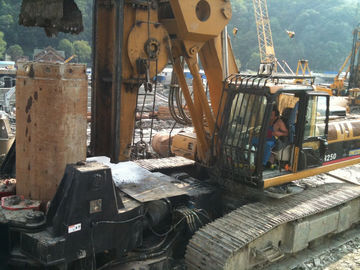

5. Construction Photos



Casing Rotary Oscillator 600mm Min Diameter 450mm Stroke ±10 Deg Rotation Angle

Casing Rotary Oscillator 600mm Min Diameter 450mm Stroke ±10 Deg Rotation Angle
