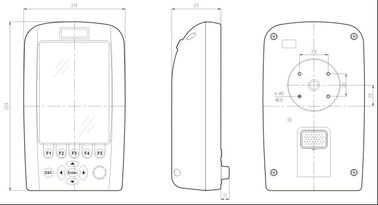

5.7 -inch JK3102 color monitor
| Technical specification of JK3102 | ||
| Processor | 32-bit embedded microprocessor + FPGA, clock speed 120MHz | |
| Screen Type | 5.7 "TFT | |
| Viewing angle | Left: 80 °, right: 80 °, up: 70 °, down: 70 ° | |
| Resolution | 480 × 640,65536 color | |
| Brightness | 525cd/m2 | |
| Button control | 11 silicone translucent keys, working life≥1 million times | |
| Program space | 2MB Flash + 8MB NorFlash | |
| Memory space | 128KB RAM + 8KB EEPROM + 1MB SRAM | |
| Calendar Clock | yes | |
| Built-in buzzer | yes | |
| Connection | A 34-pin AMP connector | |
| Working temperature | -20~+70℃ | |
| Storage temperature | -30~+80℃ | |
| Relative humidity | 20%~96% RH | |
| Atmospheric pressure | 86~106 KPa | |
| Shell Material | ABS + PC | |
| Installation | Outboard | |
| Electrical parameters | ||
| Supply voltage | DC12V / DC24V, range DC9V ~ DC36V, reverse polarity protection | |
| Power consumption | ≤6.2W | |
| Communication Interface |
Line 1 CAN: compliance with ISO 11898 standard, the baud rate 50Kbit / s ~ 1Mbit / s (the default value 250Kbit / s); |
|
| Digital input |
Line 8: Maximum input voltage 36V, the cutoff frequency 2KHz, can be configured as an input source or sink input mode |
|
| Analog Input |
Line 8: 12 conversion accuracy, the detection accuracy of 1% FS, can be configured as a resistor, electric voltage, current type. Such as: 0 ~ 10KΩ resistor type, DC5V voltage type, DC24V voltage type, 4 ~ 20mA current type |
|
| High-speed counter input |
Line 1: signal level Vp-p3 ~ 50Vdc, signal type sine, square, triangle, input frequency 1Hz ~ 10KHz |
|
| Digital output |
Line 8: open circuit, short-circuit detection, short circuit protection, can be software configured for digital / PWM output, the output duty cycle of 1% to 99%, the maximum output frequency of 400Hz, the maximum output current of 3A / Line |
|
| PWMZ output |
Line 1: You can configure the software to digital / PWM output, the output duty cycle of 1% to 99%, the maximum output frequency of 400Hz, the maximum output current of 3A |
|
| Standard power output | Line 1: Output DC5V ± 0.1V, the output current ≤300mA | |
| Maximum load | Simutaneous output ≤10A | |
| Environment test | ||
| Degree of protection | Front IP65 | |
| Anti-vibration characteristics | GB/T 2423.10 | |
| Impact properties | GB/T 2423.5 | |
| Surge Immunity | GB/T 17626.5 | |
| Electrical fast transient burst immunity | GB/T 17626.4 | |
| Electrostatic discharge immunity | GB/T 17626.2 | |
| RF electromagnetic field radiation immunity | GB/T 17626.3 | |
| RF induced conduction harassment immunity | GB/T 17626.6 | |
JK3102 monitor combines display, manipulate, control , adopting high-speed embedded microprocessor and FPGA for the central processing unit, to meet the application requirements in the harsh conditions, for construction machinery, mining machinery and other industries.
This product has a graphical ,exquisite and clear display , configurate flexibly, etc., provide an open programmable platform, can realize personalized design by the user.
To provide customers with technical advice, help the user to choose the right andgood product.
1.Responsible for product quality, and carry out "three-item of warranty".
2.The warranty period of our product is a year or 2000 hours .
3.Aftersales service reply will be in a timely manner, timely processing.
